首页进口晶振 FOX晶振FOX超小型晶振,FC0BSECGM56.0-T3,FX1612B石英水晶振动子

FOX超小型晶振,FC0BSECGM56.0-T3,FX1612B石英水晶振动子

产品型号：96456828
频率：56.000MHz
尺寸：1.6x1.2mm
产品介绍：FOX超小型晶振,FC0BSECGM56.0-T3,FX1612B石英水晶振动子，美国进口晶振，FOX晶振，福克斯晶振，型号：FC0BS（FormerFX1612B），编码为：FC0BSECGM56.0-T3，频率为...

FOX超小型晶振,FC0BSECGM56.0-T3,FX1612B石英水晶振动子，美国进口晶振，FOX晶振，福克斯晶振，型号：FC0BS（Former FX1612B），编码为：FC0BSECGM56.0-T3，频率为：56.000MHz，小体积晶振尺寸：1.6x1.2mm封装，陶瓷SMD晶体，石英晶振，四脚贴片晶振，无源晶振，SMD晶振，石英晶体谐振器，谐振器，工作温度范围：-40℃至+85℃，无铅晶振。具有超小型，轻薄型，高精度，高性能，高品质，耐热及耐环境特点。被广泛应用于：通讯设备，玩具晶振，无线蓝牙，智能穿戴设备，小型便捷式设备，智能手机，平板电脑，智能家居，游戏机设备，汽车电子，医疗设备，数码电子，遥控器设备应用等。

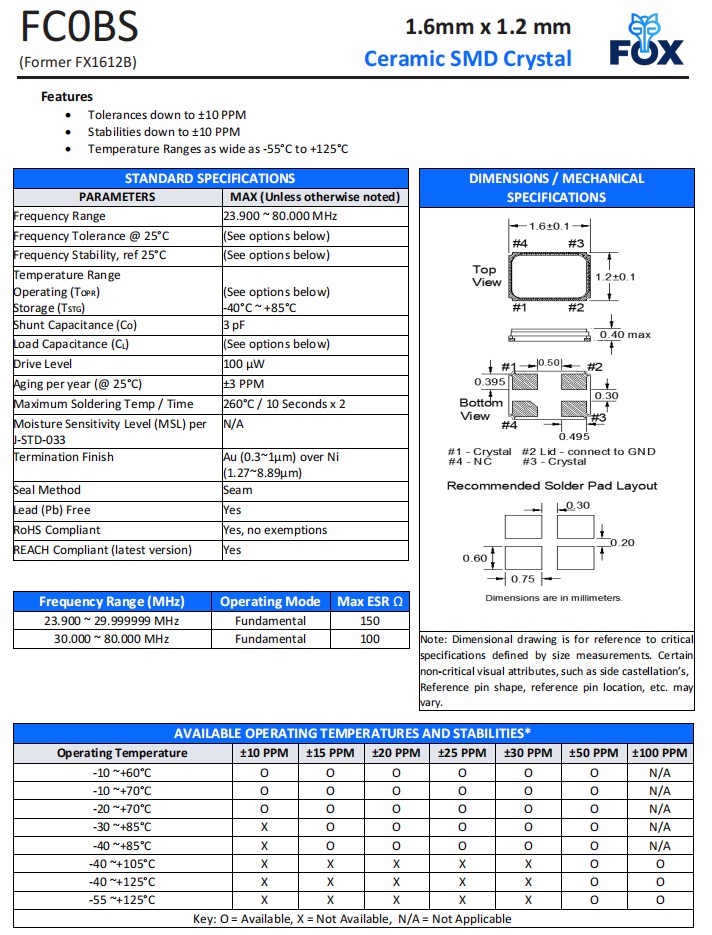

FOX超小型晶振,FC0BSECGM56.0-T3,FX1612B石英水晶振动子,参数表

STANDARD SPECIFICATIONS

PARAMETERS

MAX (Unless otherwise noted)

Frequency Range

56.000 MHz

Frequency Tolerance @ 25°C

(See options below)

Frequency Stability, ref 25°C

(See options below)

Temperature Range
Operating (TOPR)
Storage (TSTG)

(See options below)
-40°C ~ +85°C

Shunt Capacitance (CO)

3 pF

Load Capacitance (CL)

(See options below)

Drive Level

100 µW

Aging per year (@ 25°C)

±3 PPM

Maximum Soldering Temp / Time

260°C / 10 Seconds x 2

Moisture Sensitivity Level (MSL) per
J-STD-033

N/A

Termination Finish

Au (0.3~1µm) over Ni
(1.27~8.89µm)

Seal Method

Seam

Lead (Pb) Free

Yes

RoHS Compliant

Yes, no exemptions

REACH Compliant (latest version)

Yes

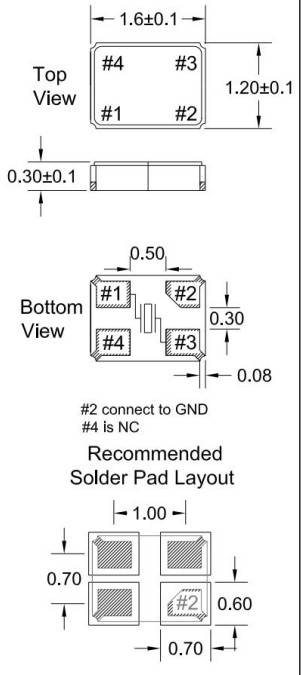

FOX超小型晶振,FC0BSECGM56.0-T3,FX1612B石英水晶振动子,尺寸图

FOX超小型晶振,FC0BSECGM56.0-T3,FX1612B石英水晶振动子

产品特点：
外形尺寸：1.6mmx1.2mm
频率范围：23.900MHz~80.000MHz贴片晶振
公差低至±10 PPM

稳定性低至±10 PPM

温度范围宽至-55°C至+125°C

原厂编码	进口晶振	型号	频率	包装/封装	频率稳定度
FQ5032B-12.000	Fox晶振	C5BQ	12MHz	4-SMD, No Lead	±30ppm
FQ5032B-25.000	Fox晶振	C5BQ	25MHz	4-SMD, No Lead	±30ppm
FQ3225B-12.000	Fox晶振	FQ3225B	12MHz	4-SMD, No Lead	±50ppm
FX252BS-16.000	Fox晶振	FX252B	16MHz	4-SMD, No Lead	±50ppm
FQ5032B-20.000	Fox晶振	C5BQ	20MHz	4-SMD, No Lead	±30ppm
FQ3225B-25.000	Fox晶振	FQ3225B	25MHz	4-SMD, No Lead	±50ppm
FQ3225B-24.000	Fox晶振	FQ3225B	24MHz	4-SMD, No Lead	±50ppm
FX425B-12.000	Fox晶振	FX425B	12MHz	4-SMD, No Lead	±50ppm
FQ5032B-18.432	Fox晶振	C5BQ	18.432MHz	4-SMD, No Lead	±30ppm
FX252BS-24.000	Fox晶振	FX252B	24MHz	4-SMD, No Lead	±50ppm
FQ5032B-24.576	Fox晶振	C5BQ	24.576MHz	4-SMD, No Lead	±30ppm
FQ5032B-24.000	Fox晶振	C5BQ	24MHz	4-SMD, No Lead	±30ppm
FQ5032B-16.000	Fox晶振	C5BQ	16MHz	4-SMD, No Lead	±30ppm
FQ5032BR-25.000	Fox晶振	C5BQ	25MHz	4-SMD, No Lead	±50ppm
FQ5032BR-12.000	Fox晶振	C5BQ	12MHz	4-SMD, No Lead	±50ppm
FQ5032BR-20.000	Fox晶振	C5BQ	20MHz	4-SMD, No Lead	±50ppm
FQ5032BR-24.000	Fox晶振	C5BQ	24MHz	4-SMD, No Lead	±50ppm
FQ3225B-16.000	Fox晶振	FQ3225B	16MHz	4-SMD, No Lead	±50ppm
FQ3225B-27.000	Fox晶振	FQ3225B	27MHz	4-SMD, No Lead	±50ppm
FQ3225BR-25.000	Fox晶振	FQ3225B	25MHz	4-SMD, No Lead	±50ppm
FQ3225BR-24.000	Fox晶振	FQ3225B	24MHz	4-SMD, No Lead	±50ppm
FQ3225BR-12.000	Fox晶振	FQ3225B	12MHz	4-SMD, No Lead	±50ppm
FX252BS-20.000	Fox晶振	FX252B	20MHz	4-SMD, No Lead	±50ppm
FQ5032BR-10.000	Fox晶振	C5BQ	10MHz	4-SMD, No Lead	±30ppm
FQ5032BR-16.000	Fox晶振	C5BQ	16MHz	4-SMD, No Lead	±50ppm
FX532B-10.000	Fox晶振	FX532B	10MHz	4-SMD, No Lead	±50ppm
FX425B-16.000	Fox晶振	FX425B	16MHz	4-SMD, No Lead	±50ppm
FQ5032B-19.6608	Fox晶振	C5BQ	19.6608MHz	4-SMD, No Lead	±30ppm
FQ5032B-14.7456	Fox晶振	C5BQ	14.7456MHz	4-SMD, No Lead	±30ppm
FQ5032B-10.000	Fox晶振	C5BQ	10MHz	4-SMD, No Lead	±30ppm
FQ3225B-20.000	Fox晶振	FQ3225B	20MHz	4-SMD, No Lead	±50ppm
FQ3225BR-16.000	Fox晶振	FQ3225B	16MHz	4-SMD, No Lead	±50ppm
FQ3225BR-20.000	Fox晶振	FQ3225B	20MHz	4-SMD, No Lead	±50ppm
603-12-67	Fox晶振	FX325BS	12MHz	4-SMD, No Lead	±50ppm
617-24.572675-1	Fox晶振	FX216B	24.572675MHZ	4-SMD, No Lead	±50ppm
FX532B-11.0592	Fox晶振	FX532B	11.0592MHz	4-SMD, No Lead	±50ppm
FX532B-12.000	Fox晶振	FX532B	12MHz	4-SMD, No Lead	±50ppm
FX532B-16.000	Fox晶振	FX532B	16MHz	4-SMD, No Lead	±50ppm
FX532B-20.000	Fox晶振	FX532B	20MHz	4-SMD, No Lead	±50ppm
FX532B-24.000	Fox晶振	FX532B	24MHz	4-SMD, No Lead	±50ppm
FX532B-24.576	Fox晶振	FX532B	24.576MHz	4-SMD, No Lead	±50ppm
FX425B-20.000	Fox晶振	FX425B	20MHz	4-SMD, No Lead	±50ppm
FX425B-24.000	Fox晶振	FX425B	24MHz	4-SMD, No Lead	±50ppm
FX425B-24.576	Fox晶振	FX425B	24.576MHz	4-SMD, No Lead	±50ppm
603-25-203	Fox晶振	FX325BS	25MHz	4-SMD, No Lead	±50ppm
603-40-48	Fox晶振	FX325BS	40MHz	4-SMD, No Lead	±20ppm
603-25-261	Fox晶振	FX325BS	25MHz	4-SMD, No Lead	±20ppm
