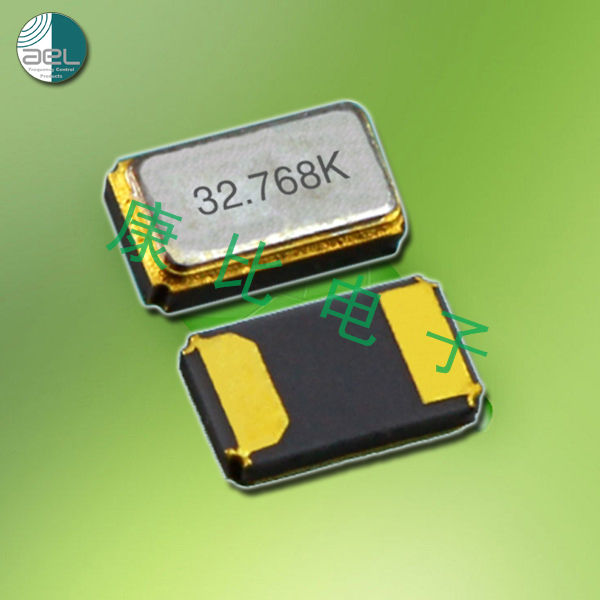

首页进口晶振 AEL晶振ELS06-32.768kHz-9-T,2012mm,AEL晶振,轻薄型晶振

ELS06-32.768kHz-9-T,2012mm,AEL晶振,轻薄型晶振

产品型号：89212929
频率：32.768KHz
尺寸：2.0x1.2x0.6mm

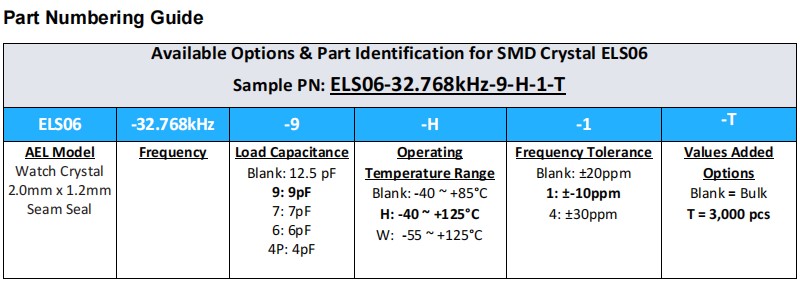

产品介绍：ELS06-32.768kHz-9-T,2012mm,AEL晶振,轻薄型晶振,ELS06,手表晶振，英国进口晶振，AEL艾尔晶振，型号：ELS06系列，编码为：ELS06-32.768kHz-9-T，频率：32.768KHz，...

ELS06-32.768kHz-9-T,2012mm,AEL晶振,轻薄型晶振,ELS06,手表晶振，英国进口晶振，AEL艾尔晶振，型号：ELS06系列，编码为：ELS06-32.768kHz-9-T，频率：32.768KHz，负载电容：9pF，工作温度范围：-40℃至+85℃，精度：±20ppm，小体积晶振尺寸：2.0x1.2x0.6mm，两脚贴片晶振，石英晶振，无源晶振，SMD晶振，石英晶体谐振器，2012晶振，具有超小型晶振，轻薄型晶振，高品质晶振，耐热及耐环境特点，应用于：移动通讯晶振，无线网络晶振，仪器仪表晶振，可穿戴设备晶振，钟表电子晶振，汽车电子等应用。

ELS06-32.768kHz-9-T,2012mm,AEL晶振,轻薄型晶振,ELS06,手表晶振，产品特点：
•SMD音叉石英晶体谐振器
•公差：±20ppm，±10ppm可用
•工作温度-40°C至+85°C、-40°C到+125°C和-55°C到+125°C可用

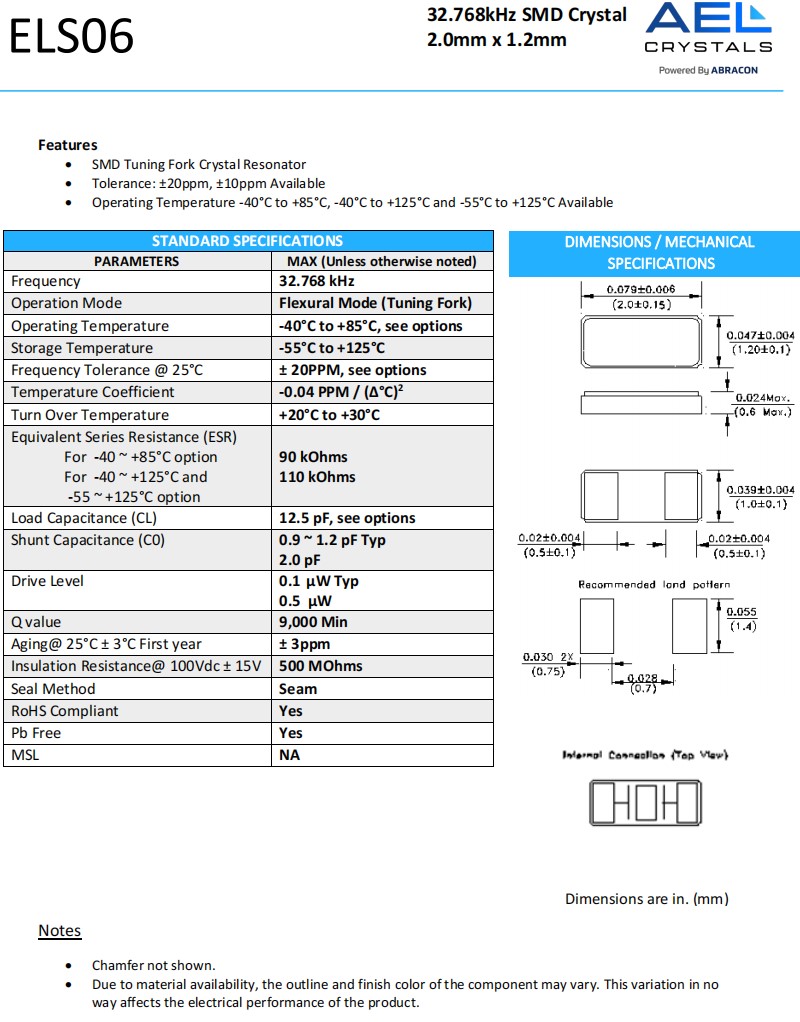

ELS06-32.768kHz-9-T,2012mm,AEL晶振,轻薄型晶振,ELS06,手表晶振,参数表

PARAMETERS			MAX (Unless otherwise noted)
Frequency			32.768 kHz
Operation Mode			Flexural Mode (Tuning Fork)
Operating Temperature			-40°C to +85°C, see options
Storage Temperature			-55°C to +125°C
Frequency Tolerance @ 25°C			± 20PPM, see options
Temperature Coefficient			-0.04 PPM / (?°C)2
Turn Over Temperature			+20°C to +30°C
Equivalent Series Resistance (ESR) For -40 ~ +85°C option For -40 ~ +125°C and -55 ~ +125°C option			90 kOhms 110 kOhms
Load Capacitance (CL)			12.5 pF, see options
Shunt Capacitance (C0)			0.9 ~ 1.2 pF Typ 2.0 pF
Drive Level			0.1 μW Typ 0.5 μW
Q value			9,000 Min
Aging@ 25°C ± 3°C First year			± 3ppm
Insulation Resistance@ 100Vdc ± 15V			500 MOhms
Seal Method			Seam
RoHS Compliant			Yes
Pb Free			Yes
MSL			NA

ELS06-32.768kHz-9-T,2012mm,AEL晶振,轻薄型晶振,ELS06,手表晶振,尺寸图

进口SMD晶振	品牌	频率	长度	宽度	高度
ELS07-32.768kHz-6-T	AEL晶振	32.768 kHz	3.2mm	1.5mm	0.75mm
ELS07-32.768kHz-T	AEL晶振	32.768 kHz	3.2mm	1.5mm	0.75mm
ELS13-32.768kHz-7-T	AEL晶振	32.768 kHz	7mm	1.5mm	1.4mm
ELS13-32.768kHz-7-T	AEL晶振	32.768 kHz	7mm	1.5mm	1.4mm
ELS13-32.768kHz-9-T	AEL晶振	32.768 kHz	7mm	1.5mm	1.4mm
ELS13-32.768kHz-T	AEL晶振	32.768 kHz	7mm	1.5mm	1.4mm
ELS13-32.768kHz-T	AEL晶振	32.768 kHz	7mm	1.5mm	1.4mm
ELS25-32.768kHz-6-2-T	AEL晶振	32.768 kHz	8mm	3.8mm	2.4mm
ELS25-32.768kHz-T	AEL晶振	32.768 kHz	8mm	3.8mm	2.4mm
ELS25-32.768kHz-T	AEL晶振	32.768 kHz	8mm	3.8mm	2.4mm
ELS06-32.768kHz-9-T	AEL晶振	32.768 kHz	2mm	1.2mm	0.6mm
ELS05-32.768kHz-9-T	AEL晶振	32.768 kHz	1.6mm	1mm	0.5mm
X32K768L025	AEL晶振	32.768 kHz	2.1mm	6.2mm	13.2mm
X32K768L104	AEL晶振	32.768 kHz	2.9mm	8mm	17mm
X32K768S003	AEL晶振	32.768 kHz	7.9mm	3.8mm	2.4mm
X32K768S012	AEL晶振	32.768 kHz	3.2mm	1.5mm	0.75mm
X32K768S013	艾尔晶振	32.768 kHz	7mm	1.5mm	1.4mm
X32K768S020	AEL晶振	32.768 kHz	7mm	1.5mm	1.4mm
X32K768S021	AEL晶振	32.768 kHz	4.1mm	1.5mm	0.7mm
X32K768S036	AEL晶振	32.768 kHz	10.41mm	4.06mm	3.56mm
X32K768S038	AEL晶振	32.768 kHz	7mm	1.5mm	1.4mm
X32K768S041	AEL晶振	32.768 kHz	4mm	1.5mm	0.7mm
X32K768S045	AEL晶振	32.768 kHz	2mm	6mm	9mm
X32K768S051	AEL晶振	32.768 kHz	7mm	1.5mm	1.4mm
X32K768S067	AEL晶振	32.768 kHz	3.2mm	1.5mm	0.75mm
X32K768S073	AEL晶振	32.768 kHz	6mm	2.5mm	8.3mm
X32K768S112	AEL晶振	32.768 kHz	7.9mm	3.8mm	2.4mm
X32K768S115	AEL晶振	32.768 kHz	8mm	4mm	2.4mm
X32K768S134	AEL晶振	32.768 kHz	7mm	1.5mm	1.4mm
X32K768S233	AEL晶振	32.768 kHz	10.4mm	4mm	3.5mm
X32K768S239	AEL晶振	32.768 kHz	7.9mm	3.8mm	2.4mm
X32K768S300	AEL晶振	32.768 kHz	3.2mm	1.5mm	0.75mm
