首页进口晶振 NDK晶振NX2520SA-16MHZ-STD-CSW-5 8pF 2520 16MHz -40℃~+85℃

NX2520SA-16MHZ-STD-CSW-5 8pF 2520 16MHz -40℃~+85℃

产品型号：47469572
频率：16~80MHz
尺寸：2.5x2.0mm
产品介绍：NX2520SA-16MHZ-STD-CSW-58pF252016MHz-40℃~+85℃无线设备晶振，日本电波工业株式NDK晶振，进口晶振型号NX2520SA，编码NX2520SA-16MHZ-STD-CSW-5，是一款小体积晶...

NX2520SA-16MHZ-STD-CSW-5 8pF 2520 16MHz -40℃~+85℃无线设备晶振，日本电波工业株式NDK晶振，进口晶振型号NX2520SA，编码NX2520SA-16MHZ-STD-CSW-5，是一款小体积晶振尺寸2.5x2.0mm四脚贴片晶振，石英晶振，无源晶振，石英晶体谐振器，无铅环保晶振，频率范围：16MHz~80MHz，具有超小型，轻薄型，优异的耐环境性能，耐热和耐冲击性，回流温度曲线（可用于无铅焊接)，应用于：电信设备，短程无线设备，消费设备功能，适用于短程无线设备如蓝牙、Wi-Fi，以及参考时钟源如智能手机和平板电脑。

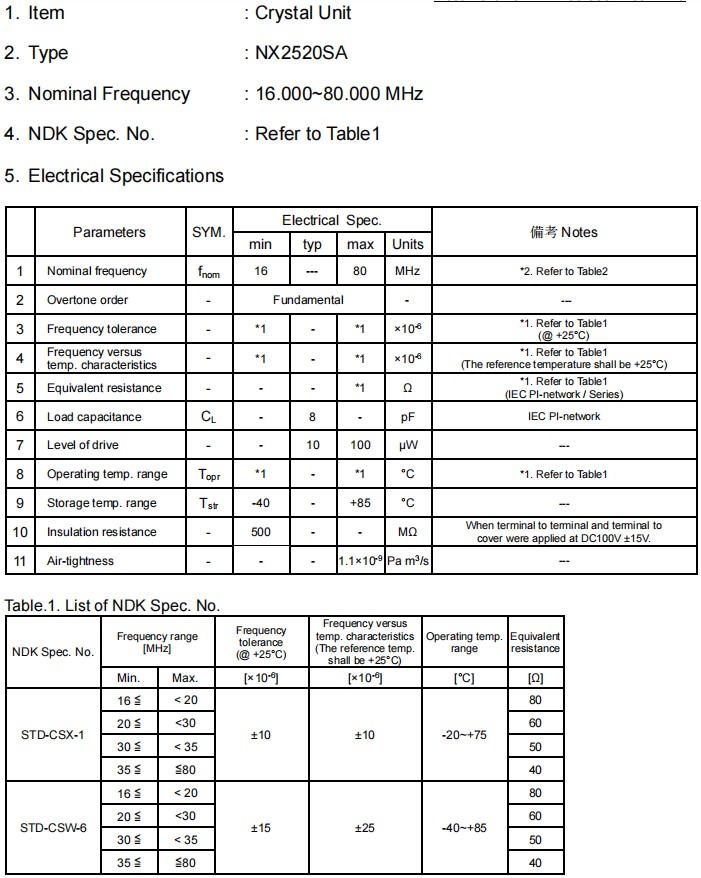

NX2520SA-16MHZ-STD-CSW-5 8pF 2520 16MHz -40℃~+85℃无线设备晶振，参数图

Item	Model	NX2520SA
Standard		Standard		Optional
Nominal Frequency (MHz)		16 ≤ F ≤ 80	16 ≤ F ≤ 54	16 ≤ F ≤ 80
Overtone Order		Fundamental
Frequency Tolerance		±15 × 10−6	±10 × 10–6	±8×10-6 (16 ≤ F ≤ 40MHz) ±12×10-6 (40 < F ≤ 80MHz)
(25 ±3 °C)
Frequency versus Temperature		±25 × 10−6	±10 × 10–6	±10 × 10–6
Characteristics				(Temp extended case, *1)
(with reference to +25 °C)
Operating Temperature		−40 to +85	–20 to +75	–20 to +75
Range(°C)				(–40 to +85 °C Extended)
Storage Temperature Range (°C)		−40 to +85		−40 to +125
Equivalent Series Resistance		Refer to *2	Refer to *3	Refer to *2
Level of Drive (μW)		10 (Max. 100)		10 (Max. 200) *1
Load Capacitance (pF)		8		6 to 32
Frequency Aging (+25 °C)		---		Max. ±3×10-6 / year *1
Specifications Number		STD-CSW-6	STD-CSX-1	Refer to *4

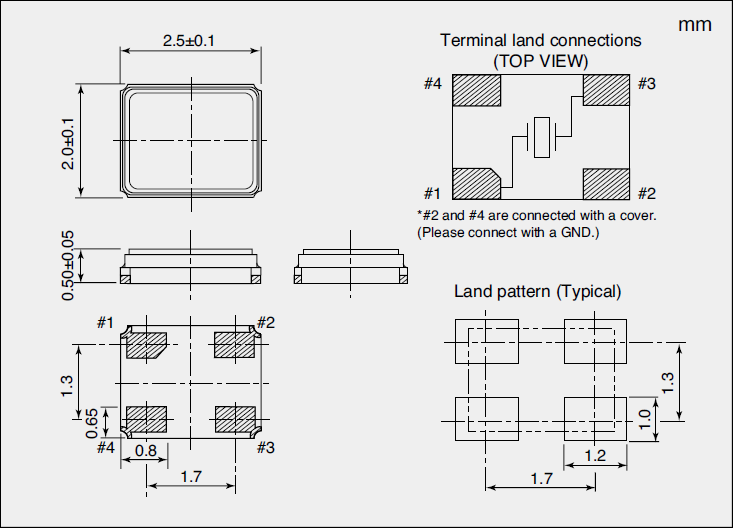

NX2520SA-16MHZ-STD-CSW-5 8pF 2520 16MHz -40℃~+85℃无线设备晶振，尺寸图

NX2520SA-16MHZ-STD-CSW-5 8pF 2520 16MHz -40℃~+85℃无线设备晶振
安装条件：
请确保在以下条件下使用该产品。否则，可能会导致产品的特性恶化或破坏

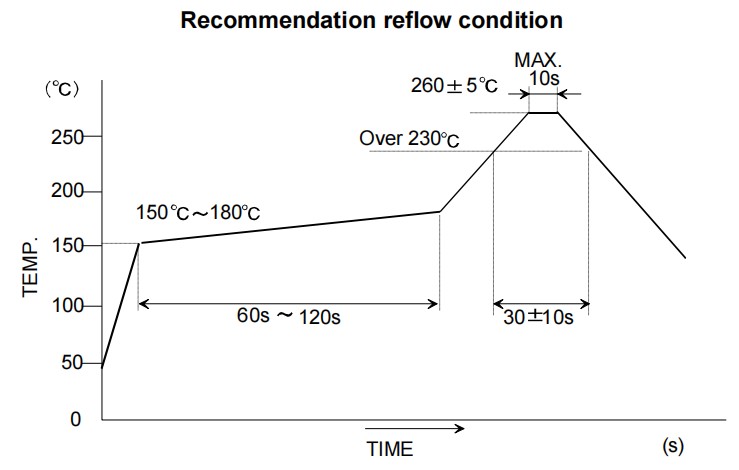

(1)回流焊耐热性
峰值温度：265℃，10sec.
加热： 230℃或更高，40秒
预热：150~180℃，120秒
回流通过时间：2次
(2)手动焊接耐热性
在终端电极上按压400°C的焊铁4秒钟（两次）

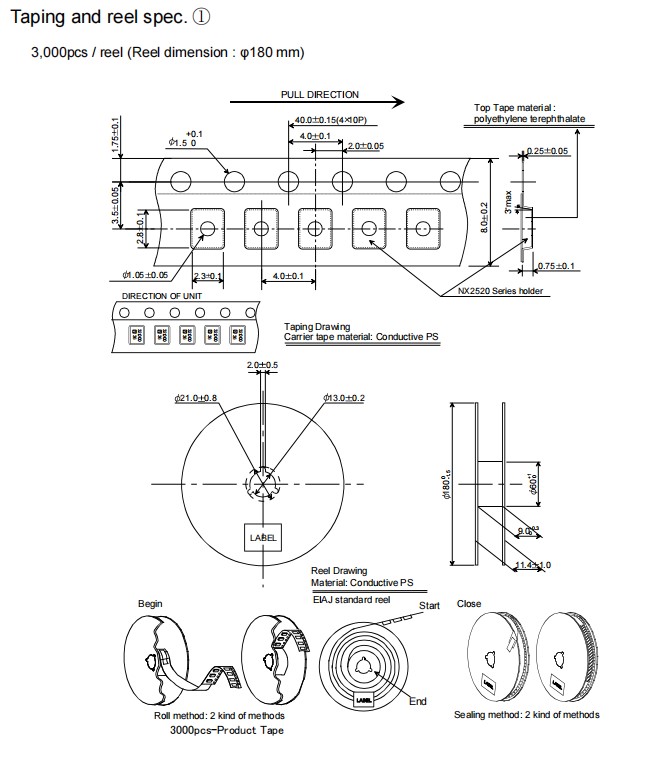

NX2520SA-16MHZ-STD-CSW-5 8pF 2520 16MHz -40℃~+85℃无线设备晶振，胶带和卷轴规格

石英晶振	品牌	型号	频率	频率稳定度	包装/封装
NX2520SA-16MHZ-STD-CSW-4	NDK晶振	NX2520SA	16MHz	±15ppm	4-SMD, No Lead
NX2520SA-16.000000MHZ	NDK晶振	NX2520SA	16MHz	±10ppm	4-SMD, No Lead
NX2520SA-24.000000MHZ	NDK晶振	NX2520SA	24MHz	±10ppm	4-SMD, No Lead
NX2520SA-24.000000MHZ-B8	NDK晶振	NX2520SA	24MHz	±10ppm	4-SMD, No Lead
NX2520SA-48.000000MHZ	NDK晶振	NX2520SA	48MHz	±10ppm	4-SMD, No Lead
NX2520SA-16MHZ-EXS00A-CS05116	NDK晶振	NX2520SA	16MHz	±15ppm	4-SMD, No Lead
NX2520SA-25.000M-STD-CSW-5	NDK晶振	NX2520SA	25MHz	±25ppm	4-SMD, No Lead
NX2520SA-26MHZ-STD-CSX-1	NDK晶振	NX2520SA	26MHz	±10ppm	4-SMD, No Lead
NX2520SA-26.000000MHZ	NDK晶振	NX2520SA	26MHz	±10ppm	4-SMD, No Lead
NX2520SA-30.000000MHZ	NDK晶振	NX2520SA	30MHz	±10ppm	4-SMD, No Lead
NX2520SA-24.576000MHZ	NDK晶振	NX2520SA	24.576MHz	±10ppm	4-SMD, No Lead
NX2520SA-20.000000MHZ	NDK晶振	NX2520SA	20MHz	±10ppm	4-SMD, No Lead
NX2520SA-32.000000MHZ	NDK晶振	NX2520SA	32MHz	±10ppm	4-SMD, No Lead
NX2520SA-44.000000MHZ	NDK晶振	NX2520SA	44MHz	±10ppm	4-SMD, No Lead
NX2520SA-26.000000MHZ-B9	NDK晶振	NX2520SA	26MHz	±10ppm	4-SMD, No Lead
EXS00A-CS05400	NDK晶振	NX2520SA	19.2MHz	±30ppm	4-SMD, No Lead
NX2520SA-16MHZ-STD-CSW-5	NDK晶振	NX2520SA	16MHz	±25ppm	4-SMD, No Lead
NX2520SA-16.000000MHZ-W1	NDK晶振	NX2520SA	16MHz	±20ppm	4-SMD, No Lead
NX2520SA-40.000000MHZ	NDK晶振	NX2520SA	40MHz	±10ppm	4-SMD, No Lead
NX2520SA-40.000000MHZ-W2	NDK晶振	NX2520SA	40MHz	±10ppm	4-SMD, No Lead
NX2520SA-40.000000MHZ-W3	NDK晶振	NX2520SA	40MHz	±10ppm	4-SMD, No Lead
NX2520SA-26MHZ-EXS00A-CS05497	NDK晶振	NX2520SA	26MHz	±10ppm	4-SMD, No Lead
