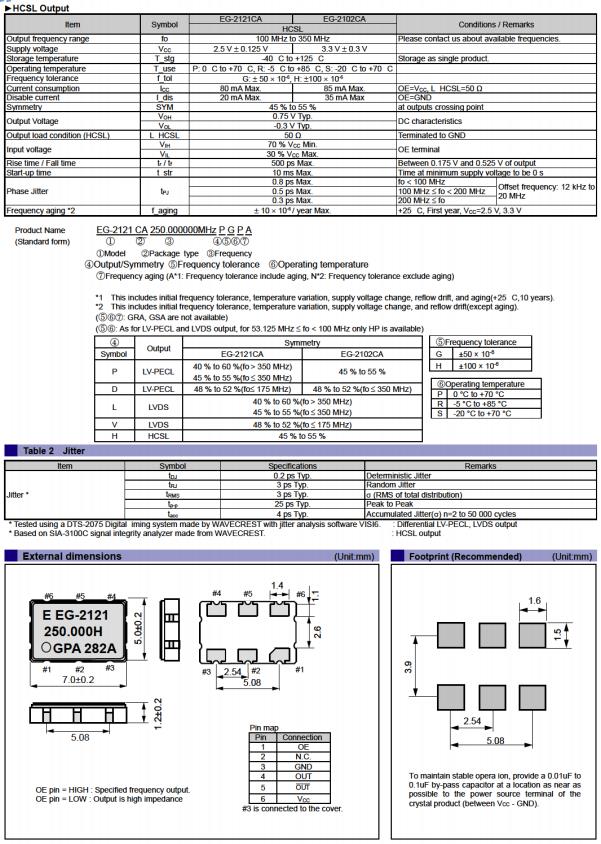

EPSON医疗设备应用OSC有源晶振Q3805CA10009600，爱普生公司作为日系品牌最为优秀的制造商，凭着自身的信念，成为一家实力派制造商，拥有先进的生产技术和高端的生产设备，向市场提供优质的晶振产品,主要生产有源晶振，石英晶体，石英晶体振荡器等元器件，爱普生晶振公司所生产的产品经过严格的生产体系制作而成，当市场开始主流医疗晶振，通过自身的研究开发了EG-2121CA晶振，OSC晶振，有源贴片晶振编码Q3805CA10009600，频率54.000000兆赫，输出WaveLVDS，电源电压2.38 ~ 2.62 V，尺寸(LxWxH)7.00 x 5.00 x 1.20 mm，工作温度0至+70°C，频率公差±100ppm，这是一款具备优越性能,低损耗,低抖动的有源晶振，应用领域广泛，其中包含用于医疗设备，可视智能家居，蓝牙模块等。

Product Number	Model	Frequency	LxWxH	Output Wave	Supply Voltage	Ope Temperature
Q3805CA10009000	EG-2121CA	160.000000 MHz	7.00 x 5.00 x 1.20 mm	LVDS	2.375 to 2.625 V	0 to 70 °C
Q3805CA10009100	EG-2121CA	644.531300 MHz	7.00 x 5.00 x 1.20 mm	LVDS	2.375 to 2.625 V	0 to 70 °C
Q3805CA10009200	EG-2121CA	100.000000 MHz	7.00 x 5.00 x 1.20 mm	LVDS	2.375 to 2.625 V	-5 to 85 °C
Q3805CA10009300	EG-2121CA	175.000000 MHz	7.00 x 5.00 x 1.20 mm	LVDS	2.375 to 2.625 V	-5 to 85 °C
Q3805CA10009400	EG-2121CA	625.000000 MHz	7.00 x 5.00 x 1.20 mm	LVDS	2.375 to 2.625 V	0 to 70 °C
Q3805CA10009500	EG-2121CA	75.000000 MHz	7.00 x 5.00 x 1.20 mm	LVDS	2.375 to 2.625 V	0 to 70 °C
Q3805CA10009600	EG-2121CA	54.000000 MHz	7.00 x 5.00 x 1.20 mm	差分晶振	2.375 to 2.625 V	0 to 70 °C
Q3805CA10009700	EG-2121CA	350.000000 MHz	7.00 x 5.00 x 1.20 mm	LVDS	2.375 to 2.625 V	0 to 70 °C
Q3805CA10009800	EG-2121CA	700.000000 MHz	7.00 x 5.00 x 1.20 mm	LVDS	2.375 to 2.625 V	0 to 70 °C
Q3805CA10009900	EG-2121CA	300.000000 MHz	7.00 x 5.00 x 1.20 mm	LVDS	2.375 to 2.625 V	-5 to 85 °C
Q3805CA10010000	EG-2121CA	328.710900 MHz	7.00 x 5.00 x 1.20 mm	LVDS	2.375 to 2.625 V	-5 to 85 °C
Q3805CA10010100	EG-2121CA	140.000000 MHz	7.00 x 5.00 x 1.20 mm	LVDS	2.375 to 2.625 V	0 to 70 °C
Q3805CA10010200	EG-2121CA	100.000000 MHz	7.00 x 5.00 x 1.20 mm	LVDS	2.375 to 2.625 V	-5 to 85 °C
Q3805CA10010300	EG-2121CA	125.000000 MHz	7.00 x 5.00 x 1.20 mm	LVDS	2.375 to 2.625 V	-5 to 85 °C
Q3805CA10010400	EG-2121CA	150.000000 MHz	7.00 x 5.00 x 1.20 mm	LVDS	2.375 to 2.625 V	-5 to 85 °C
Q3805CA10010500	EG-2121CA	148.351600 MHz	7.00 x 5.00 x 1.20 mm	LVDS	2.375 to 2.625 V	0 to 70 °C
Q3805CA10010600	EG-2121CA	266.000000 MHz	7.00 x 5.00 x 1.20 mm	LVDS	2.375 to 2.625 V	0 to 70 °C
Q3805CA10010700	EG-2121CA	400.000000 MHz	7.00 x 5.00 x 1.20 mm	LVDS	2.375 to 2.625 V	-5 to 85 °C
Q3805CA10010800	EG-2121CA	644.531250 MHz	7.00 x 5.00 x 1.20 mm	LVDS	2.375 to 2.625 V	0 to 70 °C
Q3805CA10010900	EG-2121CA	350.000000 MHz	7.00 x 5.00 x 1.20 mm	LVDS	2.375 to 2.625 V	-5 to 85 °C
Q3805CA10011000	EG-2121CA	212.500000 MHz	7.00 x 5.00 x 1.20 mm	LVDS	2.375 to 2.625 V	0 to 70 °C

相比之下，有源晶振模块一般需要电源电流为10mA ~60mA。硅振荡器的电源电流取决于其类型与功能，范围可以从低频(固定)器件的几个微安到可编程器件的几个毫安。一种低功率的硅振荡器，如MAX7375，工作在4MHz时只需不到2mA的电流。在特定的应用场合优化时钟源需要综合考虑以下一些因素：精度、成本、功耗以及环境需求。
