晶体领域领先创新的Cardinal卡迪纳尔，凭着自身非凡的魅力，吸引了无数用户前来采购与合作，在制作晶体产品上面有着专属自身的独特见解，随着几十年来的积累，日渐成熟的创新解决方案，为用户解决在晶体领域所遇到的问题，以及开发许多品质过硬的石英晶振产品，以此赢得广大用户的欢心，并建立亲密的合作关系，持续不断成长的卡迪纳尔将为社会创造巨大的价值.

Cardinal投资于石英晶体技术，为那些需要频率控制设备的用户提供最新的大批量产品。Cardinal成立了合资企业和子公司，以提供最高频率、最高质量的零件。Cardinal Components Inc，Inc .致力于通过提高产量、降低成本、提高客户满意度以及满足员工对培训、安全和士气的期望来持续提高质量。

进口晶振原厂编码	Manufacturer厂家	Description 参数	Series型号	Frequency	Frequency Stability频率稳定度	ESR (Equivalent Series Resistance)电阻	Operating Temperature    工作温度
CSM1Z-A5B2C3-40-18.432D18	Cardinal石英晶体	CRYSTAL 18.4320MHZ 18PF SMD	CSM1	18.432MHz	±50ppm	40 Ohm	-20°C ~ 70°C
CSM1Z-A5B2C3-40-18.432D18	Cardinal石英晶体	CRYSTAL 18.4320MHZ 18PF SMD	CSM1	18.432MHz	±50ppm	40 Ohm	-20°C ~ 70°C
CSM1Z-A5B2C3-40-18.432D18	Cardinal石英晶体	CRYSTAL 18.4320MHZ 18PF SMD	CSM1	18.432MHz	±50ppm	40 Ohm	-20°C ~ 70°C
CSM1Z-A1B2C3-40-24-0D12	Cardinal石英晶体	CRYSTAL 24.0000MHZ 12PF SMD	CSM1	24MHz	±50ppm	40 Ohm	-10°C ~ 70°C
CSM1Z-A1B2C3-40-24-0D12	Cardinal石英晶体	CRYSTAL 24.0000MHZ 12PF SMD	CSM1	24MHz	±50ppm	40 Ohm	-10°C ~ 70°C
CSM1Z-A1B2C3-40-24-0D12	Cardinal石英晶体	CRYSTAL 24.0000MHZ 12PF SMD	CSM1	24MHz	±50ppm	40 Ohm	-10°C ~ 70°C
CSM1Z-A0B2C3-150-4.0D18	Cardinal石英晶体	CRYSTAL 4.0000MHZ 18PF SMD	CSM1	4MHz	±50ppm	150 Ohm	-10°C ~ 60°C
CSM1Z-A0B2C3-150-4.0D18	Cardinal石英晶体	CRYSTAL 4.0000MHZ 18PF SMD	CSM1	4MHz	±50ppm	150 Ohm	-10°C ~ 60°C
CSM1Z-A0B2C3-150-4.0D18	Cardinal石英晶体	CRYSTAL 4.0000MHZ 18PF SMD	CSM1	4MHz	±50ppm	150 Ohm	-10°C ~ 60°C
CSM1Z-A5B2C3-150-4.0D20	Cardinal石英晶体	CRYSTAL 4.0000MHZ 20PF SMD	CSM1	4MHz	±50ppm	150 Ohm	-20°C ~ 70°C
CSM1Z-A5B2C3-150-4.0D20	Cardinal石英晶体	CRYSTAL 4.0000MHZ 20PF SMD	CSM1	4MHz	±50ppm	150 Ohm	-20°C ~ 70°C
CSM1Z-A5B2C3-150-4.0D20	Cardinal石英晶体	CRYSTAL 4.0000MHZ 20PF SMD	CSM1	4MHz	±50ppm	150 Ohm	-20°C ~ 70°C
CSM1Z-A5B2C3-200-4.0D18	Cardinal石英晶体	CRYSTAL 4.0000MHZ 18PF SMD	CSM1	4MHz	±50ppm	200 Ohm	-20°C ~ 70°C
CSM1Z-A5B2C3-200-4.0D18	Cardinal石英晶体	CRYSTAL 4.0000MHZ 18PF SMD	CSM1	4MHz	±50ppm	200 Ohm	-20°C ~ 70°C
CSM1Z-A5B2C3-200-4.0D18	Cardinal石英晶体	CRYSTAL 4.0000MHZ 18PF SMD	CSM1	4MHz	±50ppm	200 Ohm	-20°C ~ 70°C
CSM1Z-A5B2C5-50-19.6608D18	Cardinal石英晶体	CRYSTAL 19.6608MHZ 18PF SMD	CSM1	19.6608MHz	±50ppm	50 Ohm	-20°C ~ 70°C
CSM4Z-A2B3C3-40-14.7456D18	Cardinal石英晶体	CRYSTAL 14.7456MHZ 18PF SMD	CSM4	14.7456MHz	±30ppm	40 Ohm	-40°C ~ 85°C
CSM4Z-A2B3C3-40-14.7456D18	Cardinal石英晶体	CRYSTAL 14.7456MHZ 18PF SMD	CSM4	14.7456MHz	±30ppm	40 Ohm	-40°C ~ 85°C
CSM4Z-A2B3C3-40-14.7456D18	Cardinal石英晶体	CRYSTAL 14.7456MHZ 18PF SMD	CSM4	14.7456MHz	±30ppm	40 Ohm	-40°C ~ 85°C
CSM1Z-A5B2C5-40-16.0D18	Cardinal石英晶体	CRYSTAL 16.0000MHZ 18PF SMD	CSM1	16MHz	±50ppm	40 Ohm	-20°C ~ 70°C
CSM1Z-A5B2C5-40-16.0D18	Cardinal石英晶体	CRYSTAL 16.0000MHZ 18PF SMD	CSM1	16MHz	±50ppm	40 Ohm	-20°C ~ 70°C
CSM1Z-A5B2C5-40-16.0D18	Cardinal石英晶体	CRYSTAL 16.0000MHZ 18PF SMD	CSM1	16MHz	±50ppm	40 Ohm	-20°C ~ 70°C
CSM1Z-A5B2C5-40-25.0D18-F	Cardinal石英晶体	CRYSTAL 25.0000MHZ 18PF SMD	CSM1	25MHz	±50ppm	40 Ohm	-20°C ~ 70°C
CSM1Z-A5B2C5-40-25.0D18-F	Cardinal石英晶体	CRYSTAL 25.0000MHZ 18PF SMD	CSM1	25MHz	±50ppm	40 Ohm	-20°C ~ 70°C
CSM1Z-A5B2C5-40-25.0D18-F	Cardinal石英晶体	CRYSTAL 25.0000MHZ 18PF SMD	CSM1	25MHz	±50ppm	40 Ohm	-20°C ~ 70°C
CSM1Z-A5B2C5-40-18.432D18	Cardinal石英晶体	CRYSTAL 18.4320MHZ 18PF SMD	CSM1	18.432MHz	±50ppm	40 Ohm	-20°C ~ 70°C
CSM1Z-A5B2C5-40-18.432D18	Cardinal石英晶体	CRYSTAL 18.4320MHZ 18PF SMD	CSM1	18.432MHz	±50ppm	40 Ohm	-20°C ~ 70°C
CSM1Z-A5B2C5-40-18.432D18	Cardinal石英晶体	CRYSTAL 18.4320MHZ 18PF SMD	CSM1	18.432MHz	±50ppm	40 Ohm	-20°C ~ 70°C
CSM1Z-A5B2C5-40-12.0D18	Cardinal石英晶体	CRYSTAL 12.0000MHZ 18PF SMD	CSM1	12MHz	±50ppm	40 Ohm	-20°C ~ 70°C
CSM1Z-A5B2C5-40-12.0D18	Cardinal石英晶体	CRYSTAL 12.0000MHZ 18PF SMD	CSM1	12MHz	±50ppm	40 Ohm	-20°C ~ 70°C
CSM1Z-A5B2C5-40-12.0D18	Cardinal石英晶体	CRYSTAL 12.0000MHZ 18PF SMD	CSM1	12MHz	±50ppm	40 Ohm	-20°C ~ 70°C
CSM1Z-A2B1C2-80-7.3728D33	Cardinal石英晶体	CRYSTAL 7.3728MHZ 33PF SMD	CSM1	7.3728MHz	±100ppm	80 Ohm	-40°C ~ 85°C
CPFBZ-A2C5-32.768D6	Cardinal石英晶体	CRYSTAL 32.7680KHZ 6PF SMD	CPFB	32.768kHz	-	50 kOhm	-40°C ~ 85°C
CX5Z-A2B2C5-40-12.0D18	Cardinal石英晶体	CRYSTAL 12.0000MHZ 18PF SMD	CX5	12MHz	±50ppm	40 Ohm	-40°C ~ 85°C
CX5Z-A2B2C5-40-12.0D18	Cardinal石英晶体	CRYSTAL 12.0000MHZ 18PF SMD	CX5	12MHz	±50ppm	40 Ohm	-40°C ~ 85°C
CX5Z-A2B2C5-40-12.0D18	Cardinal石英晶体	CRYSTAL 12.0000MHZ 18PF SMD	CX5	12MHz	±50ppm	40 Ohm	-40°C ~ 85°C
CX5Z-A5B2C5-40-12.0D18	Cardinal石英晶体	CRYSTAL 12.0000MHZ 18PF SMD	CX5	12MHz	±50ppm	40 Ohm	-20°C ~ 70°C
CX5Z-A5B2C5-40-10.0D18	Cardinal石英晶体	CRYSTAL 10.0000MHZ 18PF SMD	CX5	10MHz	±50ppm	40 Ohm	-20°C ~ 70°C
CX5Z-A5B2C5-40-10.0D18	Cardinal石英晶体	CRYSTAL 10.0000MHZ 18PF SMD	CX5	10MHz	±50ppm	40 Ohm	-20°C ~ 70°C
CX5Z-A5B2C5-40-10.0D18	Cardinal石英晶体	CRYSTAL 10.0000MHZ 18PF SMD	CX5	10MHz	±50ppm	40 Ohm	-20°C ~ 70°C
CX5Z-A5B2C5-40-25D18	Cardinal石英晶体	CRYSTAL 25.0000MHZ 18PF SMD	CX5	25MHz	±50ppm	40 Ohm	-20°C ~ 70°C
CX635BZ-A1B2C3-80-14.31818D20	Cardinal石英晶体	CRYSTAL 14.31818MHZ 20PF SMD	CX635B	14.31818MHz	±50ppm	40 Ohm	-10°C ~ 70°C
CX532Z-A5B3C5-70-18.432D18	Cardinal石英晶体	CRYSTAL 18.4320MHZ 18PF SMD	CX532	18.432MHz	±30ppm	70 Ohm	-20°C ~ 70°C
C49X-A3B1C1-40-8.0D16	Cardinal石英晶体	CRYSTAL 8.0000MHZ 16PF T/H	C49	8MHz	±100ppm	40 Ohm	-55°C ~ 125°C
CSM1Z-A0B2C3-100-40.0D18	Cardinal石英晶体	CRYSTAL 40.0000MHZ 18PF SMD	CSM1	40MHz	±50ppm	100 Ohm	-10°C ~ 60°C
CSM1Z-A0B2C3-100-40.0D18	Cardinal石英晶体	CRYSTAL 40.0000MHZ 18PF SMD	CSM1	40MHz	±50ppm	100 Ohm	-10°C ~ 60°C
CSM1Z-A0B2C3-100-40.0D18	Cardinal石英晶体	CRYSTAL 40.0000MHZ 18PF SMD	CSM1	40MHz	±50ppm	100 Ohm	-10°C ~ 60°C
CSM1Z-A0B2C3-100-49.152D18	Cardinal石英晶体	CRYSTAL 49.1520MHZ 18PF SMD	CSM1	49.152MHz	±50ppm	100 Ohm	-10°C ~ 60°C
CSM1Z-A0B2C3-100-49.152D18	Cardinal石英晶体	CRYSTAL 49.1520MHZ 18PF SMD	CSM1	49.152MHz	±50ppm	100 Ohm	-10°C ~ 60°C
CSM1Z-A0B2C3-100-49.152D18	Cardinal石英晶体	CRYSTAL 49.1520MHZ 18PF SMD	CSM1	49.152MHz	±50ppm	100 Ohm	-10°C ~ 60°C
CSM1Z-A2B4C7-60-24.0D18-F	Cardinal石英晶体	CRYSTAL 24.0000MHZ 18PF SMD	CSM1	24MHz	±10ppm	60 Ohm	-40°C ~ 85°C
CSM1Z-A2B4C7-60-24.0D18-F	Cardinal石英晶体	CRYSTAL 24.0000MHZ 18PF SMD	CSM1	24MHz	±10ppm	60 Ohm	-40°C ~ 85°C
CSM1Z-A2B4C7-60-24.0D18-F	Cardinal石英晶体	CRYSTAL 24.0000MHZ 18PF SMD	CSM1	24MHz	±10ppm	60 Ohm	-40°C ~ 85°C
CX532Z-A2B3C5-70-25.0D18	Cardinal石英晶体	CRYSTAL 25.0000MHZ 18PF SMD	CX532	25MHz	±30ppm	70 Ohm	-40°C ~ 85°C
CX532Z-A2B3C5-70-25.0D18	Cardinal晶振	CRYSTAL 25.0000MHZ 18PF SMD	CX532	25MHz	±30ppm	70 Ohm	-40°C ~ 85°C
CX532Z-A2B3C5-70-25.0D18	Cardinal石英晶体	CRYSTAL 25.0000MHZ 18PF SMD	CX532	25MHz	±30ppm	70 Ohm	-40°C ~ 85°C
CSM1Z-ARB2C5-60-8.0D18	Cardinal石英晶体	CRYSTAL 8.0000MHZ 18PF SMD	CSM1	8MHz	±50ppm	60 Ohm	-40°C ~ 125°C
CSM1Z-ARB2C5-60-8.0D18	Cardinal石英晶体	CRYSTAL 8.0000MHZ 18PF SMD	CSM1	8MHz	±50ppm	60 Ohm	-40°C ~ 125°C
CSM1Z-ARB2C5-60-8.0D18	Cardinal石英晶体	CRYSTAL 8.0000MHZ 18PF SMD	CSM1	8MHz	±50ppm	60 Ohm	-40°C ~ 125°C
CSM1Z-ARB3C3-50-14.7456D18	Cardinal石英晶体	CRYSTAL 14.7456MHZ 18PF SMD	CSM1	14.7456MHz	±30ppm	50 Ohm	-40°C ~ 125°C
CSM1Z-ARB3C3-50-14.7456D18	Cardinal石英晶体	CRYSTAL 14.7456MHZ 18PF SMD	CSM1	14.7456MHz	±30ppm	50 Ohm	-40°C ~ 125°C
CSM1Z-ARB3C3-50-14.7456D18	Cardinal石英晶体	CRYSTAL 14.7456MHZ 18PF SMD	CSM1	14.7456MHz	±30ppm	50 Ohm	-40°C ~ 125°C
CSM4Z-A2B3C3-40-33.0D18	Cardinal石英晶体	CRYSTAL 33.0000MHZ 18PF SMD	CSM4	33MHz	±30ppm	40 Ohm	-40°C ~ 85°C
CSM4Z-A2B3C3-40-33.0D18	Cardinal石英晶体	CRYSTAL 33.0000MHZ 18PF SMD	CSM4	33MHz	±30ppm	40 Ohm	-40°C ~ 85°C
CSM4Z-A2B3C3-40-33.0D18	Cardinal石英晶体	CRYSTAL 33.0000MHZ 18PF SMD	CSM4	33MHz	±30ppm	40 Ohm	-40°C ~ 85°C

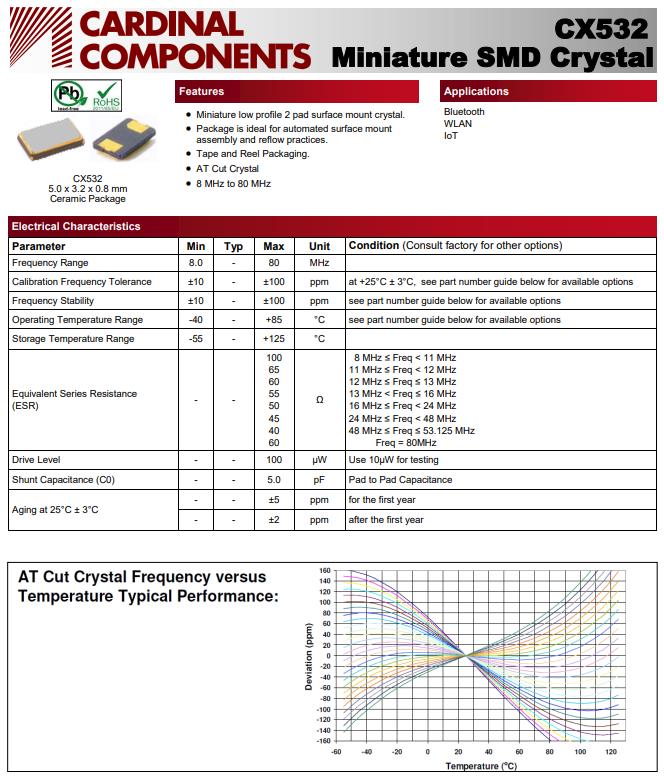

处于发展正旺盛的卡迪纳尔公司，很快洞察到新的需求，针对性推出了CX532Z-A1B3C2-45-40.0D18，型号CX532，石英晶体谐振器，贴片晶振，尺寸为5032mm，频率为40MHZ，微型低轮廓2垫表面安装晶体。包装是理想的自动表面安装，装配和回流实践。磁带和卷轴包装。AT切割水晶，8mhz ~ 80mhz，应用：蓝牙,无线局域网,物联网.
