    • 首页晶振新闻 NX253系列具有极低抖动性能的高性能LVDS晶体振荡器

    NX253系列具有极低抖动性能的高性能LVDS晶体振荡器

    来源：http://www.kangbidz.com 作者：康比电子 2022年07月16

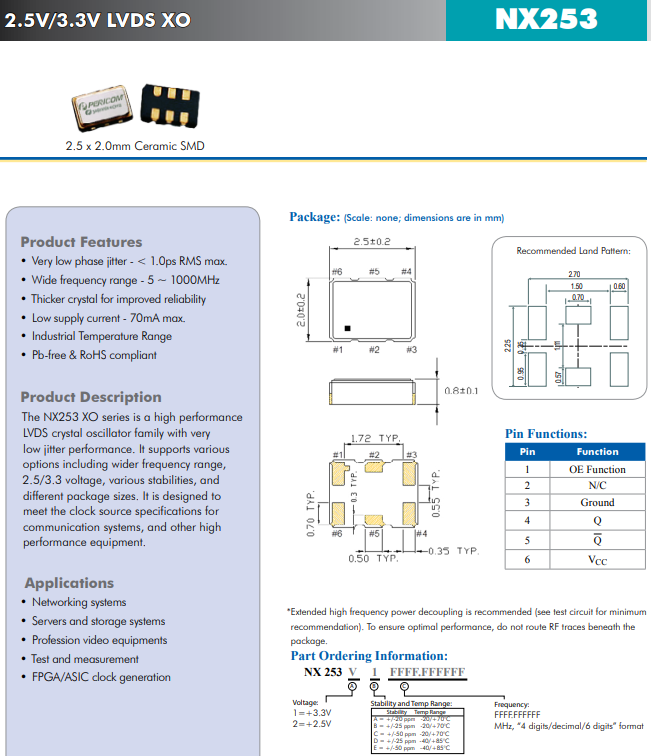

    NX253 XO系列是具有极低抖动性能的高性能LVDS晶体振荡器系列。它支持各种选项，包括更宽的频率范围、2.5/3.3 电压、各种稳定性和不同的封装尺寸。它旨在满足通信系统和其他高性能设备的时钟源规范。
    特征：
    非常低的相位抖动 - <1.0ps RMS最大值。
    宽频率范围 -5~1000MHz差分晶振
    更厚的晶体以提高可靠性
    低电源电流 - 最大 70mA。
    工业温度范围
    无铅且符合RoHS标准
    应用：网络系统，服务器和存储系统，专业视频设备，测试和测量，FPGA/ASIC 时钟生成
    NX253系列具有极低抖动性能的高性能LVDS晶体振荡器,NX2531B0026.000000,差分晶振,ECERA贴片晶振
    NX7021D0622.080000 Diodes Incorporated SaRonix-eCera™ NX 622.08MHz ±25ppm
    NX7021D0622.080000 Diodes Incorporated SaRonix-eCera™ NX 622.08MHz ±25ppm
    NX7021D0622.080000 Diodes Incorporated SaRonix-eCera™ NX 622.08MHz ±25ppm
    NX7031D0644.531250 Diodes Incorporated SaRonix-eCera™ NX 644.53125MHz ±25ppm
    NX7031D0644.531250 Diodes Incorporated SaRonix-eCera™ NX 644.53125MHz ±25ppm
    NX7031D0644.531250 Diodes Incorporated SaRonix-eCera™ NX 644.53125MHz ±25ppm
    WF7021B0622.080000 Diodes Incorporated SaRonix-eCera™ WF 622.08MHz ±5ppm
    WF7021B0622.080000 Diodes Incorporated SaRonix-eCera™ WF 622.08MHz ±5ppm
    WF7021B0622.080000 Diodes Incorporated SaRonix-eCera™ WF 622.08MHz ±5ppm
    WF9021B0622.080000 Diodes Incorporated SaRonix-eCera™ WF 622.08MHz ±5ppm
    WF9021B0622.080000 Diodes Incorporated SaRonix-eCera™ WF 622.08MHz ±5ppm
    WF9021B0622.080000 Diodes Incorporated SaRonix-eCera™ WF 622.08MHz ±5ppm
    KD3270040 Diodes Incorporated SaRonix-eCera™ KD 32.768kHz ±25ppm
    KD3270040 Diodes Incorporated SaRonix-eCera™ KD 32.768kHz ±25ppm
    KD3270040 Diodes Incorporated SaRonix-eCera™ KD 32.768kHz ±25ppm
    KD3270046Z Diodes Incorporated SaRonix-eCera™ KD 32.768kHz ±50ppm
    KD3270046Z Diodes Incorporated SaRonix-eCera™ KD 32.768kHz ±50ppm
    KD3270046Z Diodes Incorporated SaRonix-eCera™ KD 32.768kHz ±50ppm
    JX5011C0056.000000 Diodes Incorporated SaRonix-eCera™ JX 56MHz ±50ppm
    JX5011C0056.000000 Diodes Incorporated SaRonix-eCera™ JX 56MHz ±50ppm
    JX5011C0056.000000 Diodes Incorporated SaRonix-eCera™ JX 56MHz ±50ppm
    KK3270050 Diodes Incorporated SaRonix-eCera™ KK 32.768kHz ±25ppm
    KK3270050 Diodes Incorporated SaRonix-eCera™ KK 32.768kHz ±25ppm
    KK3270050 Diodes Incorporated SaRonix-eCera™ KK 32.768kHz ±25ppm
    JT255CF0026.000000 Diodes Incorporated SaRonix-eCera™ JT 26MHz ±500ppb
    JT255CF0026.000000 Diodes Incorporated SaRonix-eCera™ JT 26MHz ±500ppb


    JT255CF0026.000000 Diodes Incorporated SaRonix-eCera™ JT 26MHz ±500ppb
    FRBST1061 Diodes Incorporated SaRonix-eCera™ FR 61.44MHz ±50ppm
    JT2551T0039.000000 Diodes Incorporated SaRonix-eCera™ JT 39MHz ±2.5ppm
    JT2551T0039.000000 Diodes Incorporated SaRonix-eCera™ JT 39MHz ±2.5ppm
    JT2551T0039.000000 Diodes Incorporated SaRonix-eCera™ JT 39MHz ±2.5ppm
    KM3270004 Diodes Incorporated SaRonix-eCera™ KM 32.768kHz ±25ppm
    FK2500021 Diodes Incorporated SaRonix-eCera™ FK 25MHz ±50ppm
    FN4000159 Diodes Incorporated SaRonix-eCera™ FN 40MHz ±50ppm
    FK0800003 Diodes Incorporated SaRonix-eCera™ FK 8MHz ±50ppm
    PRBST1122 Diodes Incorporated SaRonix-eCera™ FR 122.88MHz ±50ppm
    PRBST1122 Diodes Incorporated SaRonix-eCera™ FR 122.88MHz ±50ppm
    PRBST1122 Diodes Incorporated SaRonix-eCera™ FR 122.88MHz ±50ppm
    KJ3270001 Diodes Incorporated SaRonix-eCera™ KJ 32.768kHz ±25ppm
    KJ3270001 Diodes Incorporated SaRonix-eCera™ KJ 32.768kHz ±25ppm
    KJ3270001 Diodes Incorporated SaRonix-eCera™ KJ 32.768kHz ±25ppm
    FK2500022 Diodes Incorporated SaRonix-eCera™ FK 25MHz ±50ppm
    FK2500022 Diodes Incorporated SaRonix-eCera™ FK 25MHz ±50ppm
    FK5000013 Diodes Incorporated SaRonix-eCera™ FK 50MHz ±50ppm
    FK5000013 Diodes Incorporated SaRonix-eCera™ FK 50MHz ±50ppm
    FD2500050 Diodes Incorporated SaRonix-eCera™ FD 25MHz ±50ppm
    FD2500050 Diodes Incorporated SaRonix-eCera™ FD 25MHz ±50ppm
    FDSAS2062 Diodes Incorporated SaRonix-eCera™ ASSP XO™ 62.5MHz ±50ppm
    FDSAS2062 Diodes Incorporated SaRonix-eCera™ ASSP XO™ 62.5MHz ±50ppm
    FDSAS2062 Diodes Incorporated SaRonix-eCera™ ASSP XO™ 62.5MHz ±50ppm
    FK1200011 Diodes Incorporated SaRonix-eCera™ FK 12MHz ±50ppm

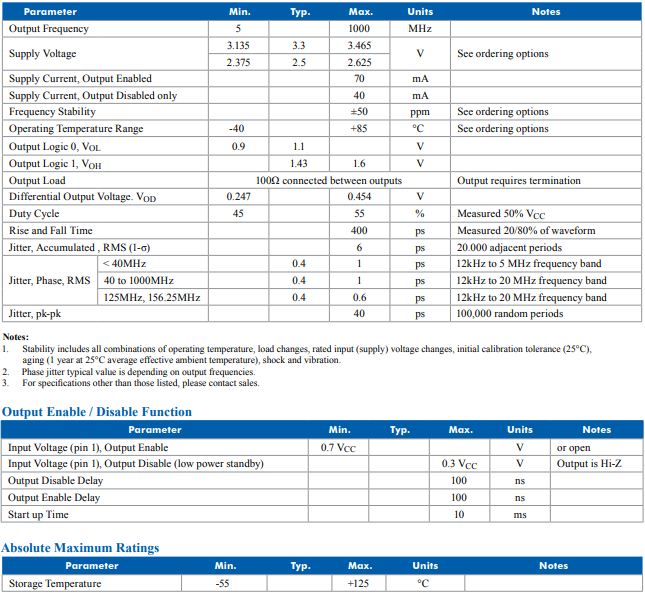

    Product Parameters

    ProductSeries NX2
    Family XO
    Output Logic LVDS
    Supply Voltage (V) 3.3, 2.5
    Freq Range (MHz) 5 to 1000
    Jitter RMS (ps) <1
    PkgType Ceramic Seam
    Package Size (mm) 2.5x2.0x0.9
    Pads 6
    NX253系列具有极低抖动性能的高性能LVDS晶体振荡器,NX2531B0026.000000,差分晶振,ECERA贴片晶振
    产品参数：
    产品系列 NX2 贴片晶振
    家庭 XO
    输出逻辑 LVDS
    电源电压 3.3V, 2.5V
    频率范围 5到1000MHz
    抖动均方根 (ps) <1
    包装类型 陶瓷缝
    包装尺寸 2.5x2.0x0.9mm
    垫 6脚
    FK1200011 Diodes Incorporated SaRonix-eCera™ FK 12MHz ±50ppm
    FNSAS2075 Diodes Incorporated SaRonix-eCera™ ASSP XO™ 75MHz ±50ppm
    FD6250012 Diodes Incorporated SaRonix-eCera™ FD 62.5MHz ±50ppm
    KN3270028 Diodes Incorporated SaRonix-eCera™ KN 32.768kHz ±50ppm
    KD3270032 Diodes Incorporated SaRonix-eCera™ KD 32.768kHz ±50ppm
    KN3270031 Diodes Incorporated SaRonix-eCera™ KN 32.768kHz ±50ppm
    KD3270042 Diodes Incorporated SaRonix-eCera™ KD 32.768kHz ±50ppm
    KN3270022 Diodes Incorporated SaRonix-eCera™ KN 32.768kHz ±50ppm
    KD3270036 Diodes Incorporated SaRonix-eCera™ KD 32.768kHz ±50ppm
    KN3270032 Diodes Incorporated SaRonix-eCera™ KN 32.768kHz ±50ppm
    KN3270033 Diodes Incorporated SaRonix-eCera™ KN 32.768kHz ±50ppm
    KD3270034 Diodes Incorporated SaRonix-eCera™ KD 32.768kHz ±50ppm
    KX3211B0032.768000 Diodes Incorporated SaRonix-eCera™ KX 32.768kHz ±25ppm
    KX3211C0032.768000 Diodes Incorporated SaRonix-eCera™ KX 32.768kHz ±50ppm
    KX3211E0032.768000 Diodes Incorporated SaRonix-eCera™ KX 32.768kHz ±50ppm
    KX3211G0032.768000 Diodes Incorporated SaRonix-eCera™ KX 32.768kHz ±25ppm
    KX3213B0032.768000 Diodes Incorporated SaRonix-eCera™ KX 32.768kHz ±25ppm
    KX3213C0032.768000 Diodes Incorporated SaRonix-eCera™ KX 32.768kHz ±50ppm
    KX3213G0032.768000 Diodes Incorporated SaRonix-eCera™ KX 32.768kHz ±25ppm
    KX3211H0032.768000 Diodes Incorporated SaRonix-eCera™ KX 32.768kHz ±25ppm
    KD3270043 Diodes Incorporated SaRonix-eCera™ KD 32.768kHz ±25ppm
    KN3270026 Diodes Incorporated SaRonix-eCera™ KN 32.768kHz ±25ppm
    KN3270034 Diodes Incorporated SaRonix-eCera™ KN 32.768kHz ±25ppm
    KD3270012 Diodes Incorporated SaRonix-eCera™ KD 32.768kHz ±25ppm
    KK3270040 Diodes Incorporated SaRonix-eCera™ KK 32.768kHz ±50ppm
    NX253系列具有极低抖动性能的高性能LVDS晶体振荡器,NX2531B0026.000000,差分晶振,ECERA贴片晶振
    NX251   CMOS 3.32.5 5 到 250 <1 2.5x2.0x0.9 4 2.5mmx2.0mm CMOS 可编程 XO
    NX252   LVPECL 3.32.5 5 到 1000 <1 2.5x2.0x0.9 6 2.5mmx2.0mm LVPECL 可编程 XO
    NX253   LVDS 3.32.5 5 到 1000 <1 2.5x2.0x0.9 6 2.5mmx2.0mm LVDS 可编程 XO
    NX254   HCSL 3.32.5 5 至 212.5 <1 2.5x2.0x0.9 6 2.5mmx2.0mm HCSL 可编程 XO
    NX256   CML 3.32.5 5 到 1000 <1 2.5x2.0x0.9 6 2.5mmx2.0mm CML可编程XO
    NX26SA   CML 3.32.5 5 到 1000 <1 2.5x2.0x0.9 6 2.5mmx2.0mm CML 2频可编程XO
    NX26SB   CML 3.32.5 5 到 1000 <1 2.5x2.0x0.9 6 2.5mmx2.0mm CML 四频可编程XO

    KK3270042 Diodes Incorporated SaRonix-eCera™ KK 32.768kHz ±50ppm
    KK3270044 Diodes Incorporated SaRonix-eCera™ KK 32.768kHz ±50ppm
    KN3270027 Diodes Incorporated SaRonix-eCera™ KN 32.768kHz ±20ppm
    KD3270033 Diodes Incorporated SaRonix-eCera™ KD 32.768kHz ±20ppm
    KN3270030 Diodes Incorporated SaRonix-eCera™ KN 32.768kHz ±20ppm
    KD3270039 Diodes Incorporated SaRonix-eCera™ KD 32.768kHz ±20ppm
    KN3270023 Diodes Incorporated SaRonix-eCera™ KN 32.768kHz ±50ppm
    FNC500129 Diodes Incorporated SaRonix-eCera™ FN 125MHz ±50ppm
    KN3270036 Diodes Incorporated SaRonix-eCera™ KN 32.768kHz ±25ppm
    KN3270029 Diodes Incorporated SaRonix-eCera™ KN 32.768kHz ±25ppm
    KX2511B0032.768000 Diodes Incorporated SaRonix-eCera™ KX 32.768kHz ±25ppm
    KX2511C0032.768000 Diodes Incorporated SaRonix-eCera™ KX 32.768kHz ±50ppm
    KX2511E0032.768000 Diodes Incorporated SaRonix-eCera™ KX 32.768kHz ±50ppm
    KX2511H0032.768000 Diodes Incorporated SaRonix-eCera™ KX 32.768kHz ±25ppm
    KX2513C0032.768000 Diodes Incorporated SaRonix-eCera™ KX 32.768kHz ±50ppm
    KX2513E0032.768000 Diodes Incorporated SaRonix-eCera™ KX 32.768kHz ±50ppm
    KX2513H0032.768000 Diodes Incorporated SaRonix-eCera™ KX 32.768kHz ±25ppm
    KX2513B0032.768000 Diodes Incorporated SaRonix-eCera™ KX 32.768kHz ±25ppm
    KD3270038 Diodes Incorporated SaRonix-eCera™ KD 32.768kHz ±25ppm
    KD3270038 Diodes Incorporated SaRonix-eCera™ KD 32.768kHz ±25ppm
    KD3270038 Diodes Incorporated SaRonix-eCera™ KD 32.768kHz ±25ppm
    KN3270025 Diodes Incorporated SaRonix-eCera™ KN 32.768kHz ±25ppm
    KX2513A0032.768000 Diodes Incorporated SaRonix-eCera™ KX 32.768kHz ±20ppm
    KD3270041 Diodes Incorporated SaRonix-eCera™ KD 32.768kHz ±20ppm
    KN3270024 Diodes Incorporated SaRonix-eCera™ KN 32.768kHz ±20ppm
    NX253系列具有极低抖动性能的高性能LVDS晶体振荡器,NX2531B0026.000000,差分晶振,ECERA贴片晶振
    DIODES百利通亚陶晶振所生产的石英晶振,贴片晶振,石英晶体振荡器,压电石英晶体元器件、压电石英晶体、有源晶体广泛应用于智能设备,汽车电子,无线通讯,网络通信,精密仪器,GPS卫星,网络控制器,全球GPS定位系统等领域.工程、销售、仓储和物流办事处设在台北,香港、曼彻斯特、上海、深圳、中国、韩国、慕尼黑、德国、以及世界各地的支持办事处.
